Logs & Monitoring
DLH.io documentation for Logs & Monitoring
Overview
DLH.io generates structured log events from connectors and provides a descriptive view to monitor and troubleshoot the operations happening with each of your connectors.
DLH.io supports monitoring in the following ways:
- Log Events
- Audit Tables in the Target environment
DLH.io Monitoring Dashboard
You can view logs in your Logs & Monitoring Dashboard

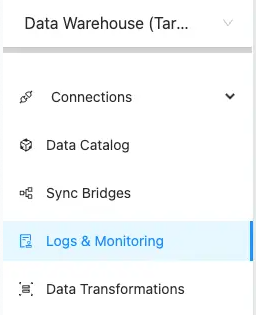

- Access the view from the Menu Bar
- You can filter on the logs as per the below options:
- A - Target Connection Name
- B - Bridge Name
- C- Filter logs - Error Logs only
- **D - **Filter Duration :
- 1 Hour
- 1 Week
- 1 Day
Log Cycle
Logging Action Attributes Available
| Action Name | Action Types | Description | ENTITY (Example) |
|---|---|---|---|
| START | SYNC | Initiate the syncing process | DLH.io -Source Bridge |
| CONNECT | CHECKPOINT | ||
| SOURCE | Establish Connection Checkpoint | PostGres(Source) | |
| FILTERING | SOURCE | Filtering the Source records | PostGres(Source) |
| CHANGE_TRACKING | CHANGE_TRACKING | ||
| SYNC | Setting up Logical Replication Slots | PostGres(Source) | |
| START | RETRIEVE | Retrieve records from the Source | PostGres(Source) |
| ROW_COUNT | SYNC | Row count at the Source | PostGres(Source) |
| DONE | COMPRESS | Compress Files for upload | PostGres(Source) |
| START | UPLOAD_S3 | Upload Files to S3 | Amazon S3 |
| COMPLETED_FILES_TO_S3 | UPLOAD_S3 | Upload Files to S3 Amazon S3 | Amazon S3 |
| START | SNOWFLAKE_PROCESS | Setup Target Connection | Target Bridge |
| START_TARGET_HELPER | TARGET | Setup Target Connection | Snowflake (Target) |
| TMP_SCHEMA | AVAILABLE/DROPPED/ CREATED | Drop and Setup Temporary Schemas | Snowflake (Target) |
| LOADING | DATA | Load data into Temporary Schemas | Snowflake (Target) |
| MERGE | MAIN_TABLE | Merge into Final Schemas | Snowflake (Target) |
| INSERT | AUDIT_TABLE | Insert into audit tables | Snowflake (Target) |
| DONE | END | Closing the syncing process | DLH.io -Source Bridge |
| COMPLETED | BRIDGE | Closing the syncing process Closing the syncing process | DLH.io -Source Bridge |

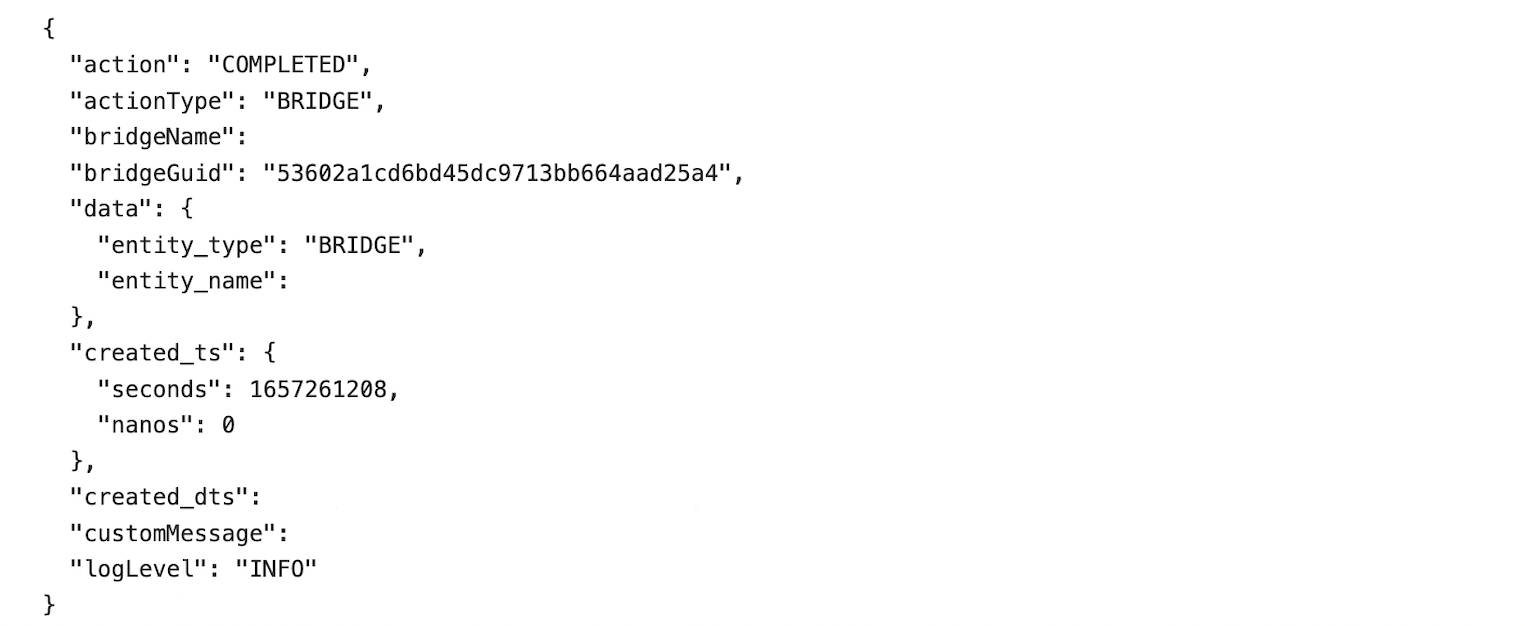

Log events
The event logs are in a standardized JSON format
